Epson SureColor SC-T3130N A1 Plotter Wide Format Technical Printer

Quantity

Summary

+

Product Details

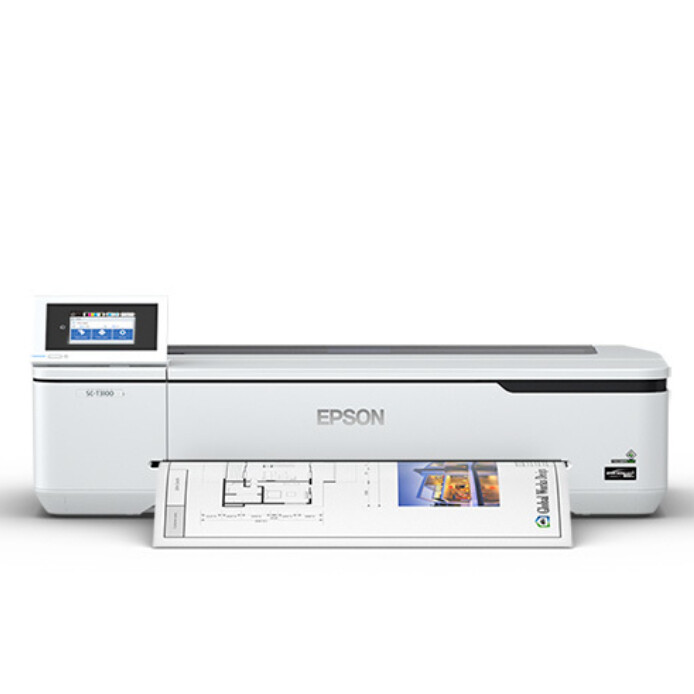

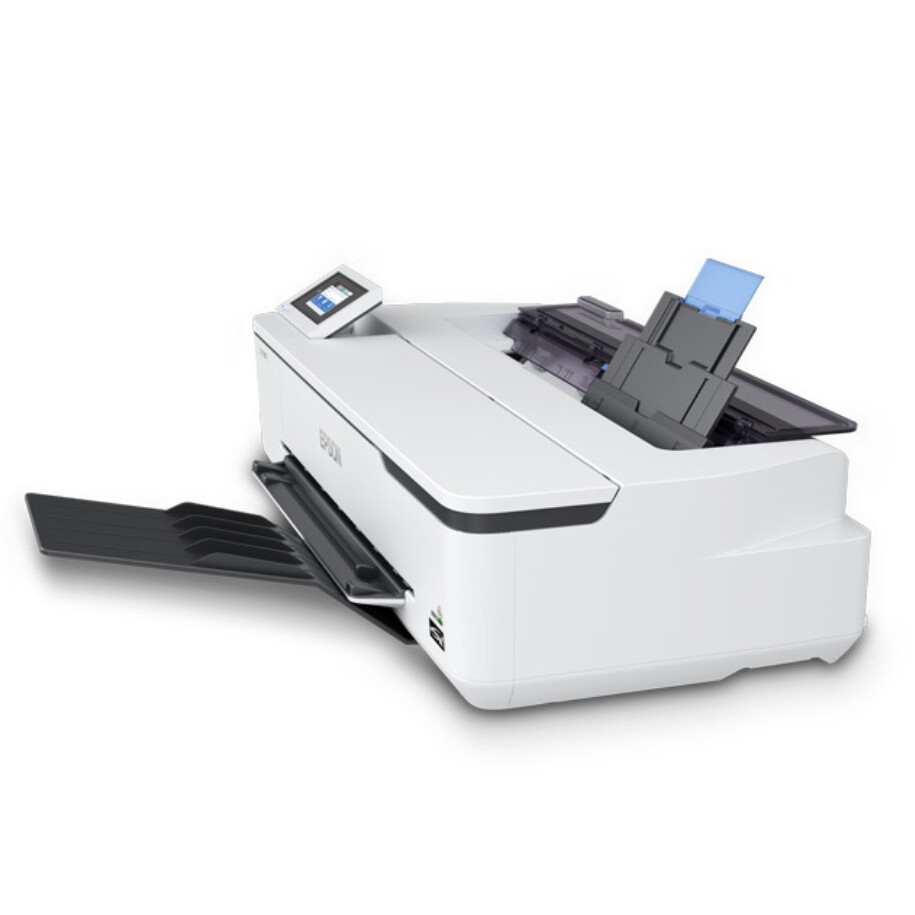

📊 Epson SureColor SC‑T3130N

A compact 24" A1/D-size technical plotter designed for architects, engineers, and construction professionals. Powered by PrecisionCore TFP™ technology with 3,200-nozzle printhead and 4-picoliter droplet precision, it delivers razor-sharp prints at 2,400 × 1,200 dpi. This model combines speed and quality, producing A1 CAD drawings in ~34 seconds with UltraChrome XD2 pigment inks, offering vibrant, durable output even on plain and tracing paper. Built for convenience, it features auto-sheet feeder, USB/LAN/Wi-Fi, a 4.3″ color touchscreen, anti-dust design, and nozzle verification to ensure uninterrupted operation. Compact and maintenance-light, the SC‑T3130N is the ideal desktop plotter for fast, reliable wide-format printing.



SpecificationDetails
Printing Technology & HeadPrecisionCore TFP; 3,200 nozzles (800×4); 4.0 pl min droplet
Max Resolution2,400 × 1,200 dpi
A1/CAD Print Speed~34 sec (≈106 A1/hr)
Ink Type & CapacityUltraChrome XD2 pigment inks; CMY 26 ml/50 ml, K 50 ml/80 ml
Media Width & Roll Handling329–610 mm; roll core 2″, max 3 kg; auto cutter
Sheet Feed & MarginASF up to A3 (50 sheets); 3 mm margins
ConnectivitySuperSpeed USB, 100/1000 Mbps LAN, Wi‑Fi b/g/n, Wi‑Fi Direct
User Interface & Maintenance4.3″ color touchscreen; Nozzle Verification & anti-dust design
Memory & Size1 GB RAM; dimensions 970 × 505 × 230 mm; weight 27 kg
Power ConsumptionOperating ~28 W; Ready ~8 W; Sleep ~1.6 W; Off ~0.2 W
Warranty3-year standard warranty



✅ Why the SC‑T3130N Excels

  • Fast CAD output: A1 prints in ~34 seconds, perfect for time-critical workflows.
  • High precision & durability: UltraChrome XD2 pigment ink ensures vivid, water-resistant prints on various media.
  • Reliable operation: Features like Nozzle Verification and anti-dust design minimize downtime.
  • Versatile media support: Handles 610 mm roll, A3 auto-sheet feed, and customizable margins.
  • Flexible connectivity: USB, Ethernet, and wireless printing, with an intuitive touchscreen control.
  • Compact & efficient: Fits on a desktop, low power consumption, and eco-conscious storage.
